Phoenix Android Radio Install Manual: Lexus GS 300/350/430/450h (2005 - 2011) PX6
Posted: Wed Apr 07, 2021 3:31 pm
Car Type - GS300 Hi
Protocol - Tangdu / BNR w AC
Backup camera trigger reverse
Back (brown wire) get 12 volt to trigger reverse screen
from factory also can get 12 volt trigger power
Protocol - Tangdu / BNR w AC
Backup camera trigger reverse
Back (brown wire) get 12 volt to trigger reverse screen
from factory also can get 12 volt trigger power

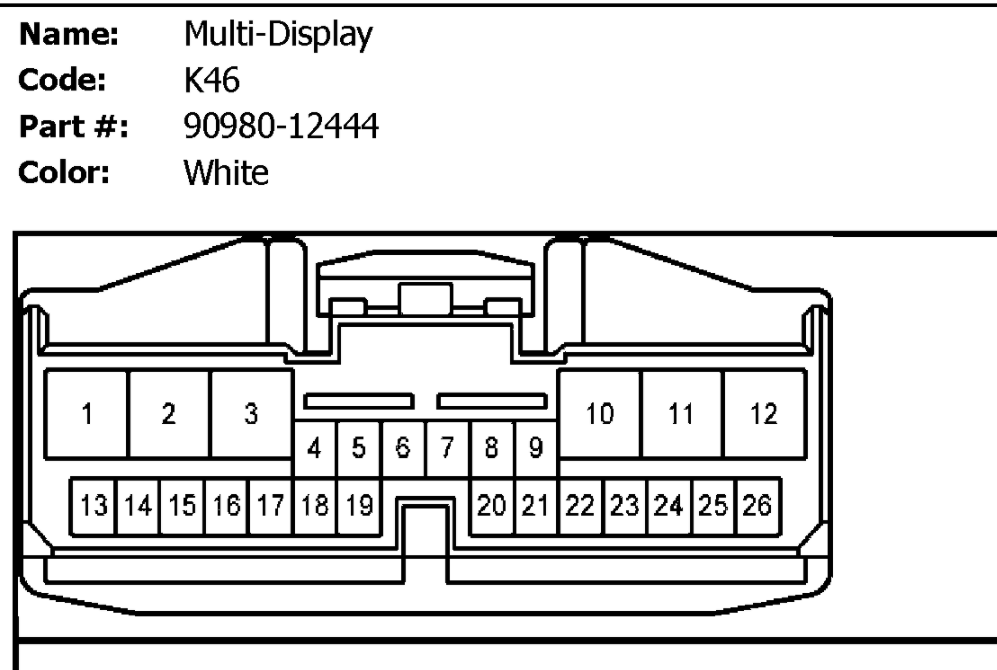

- Phoenix Android Radio Px6 Lexus Gs 300 350 430 450h 460 2005 2011 Wiring 1 (77.23 KiB) Viewed 17605 times
- Phoenix Android Radio Px6 Lexus Gs 300 350 430 450h 460 2005 2011 Wiring 2 (87 KiB) Viewed 17605 times

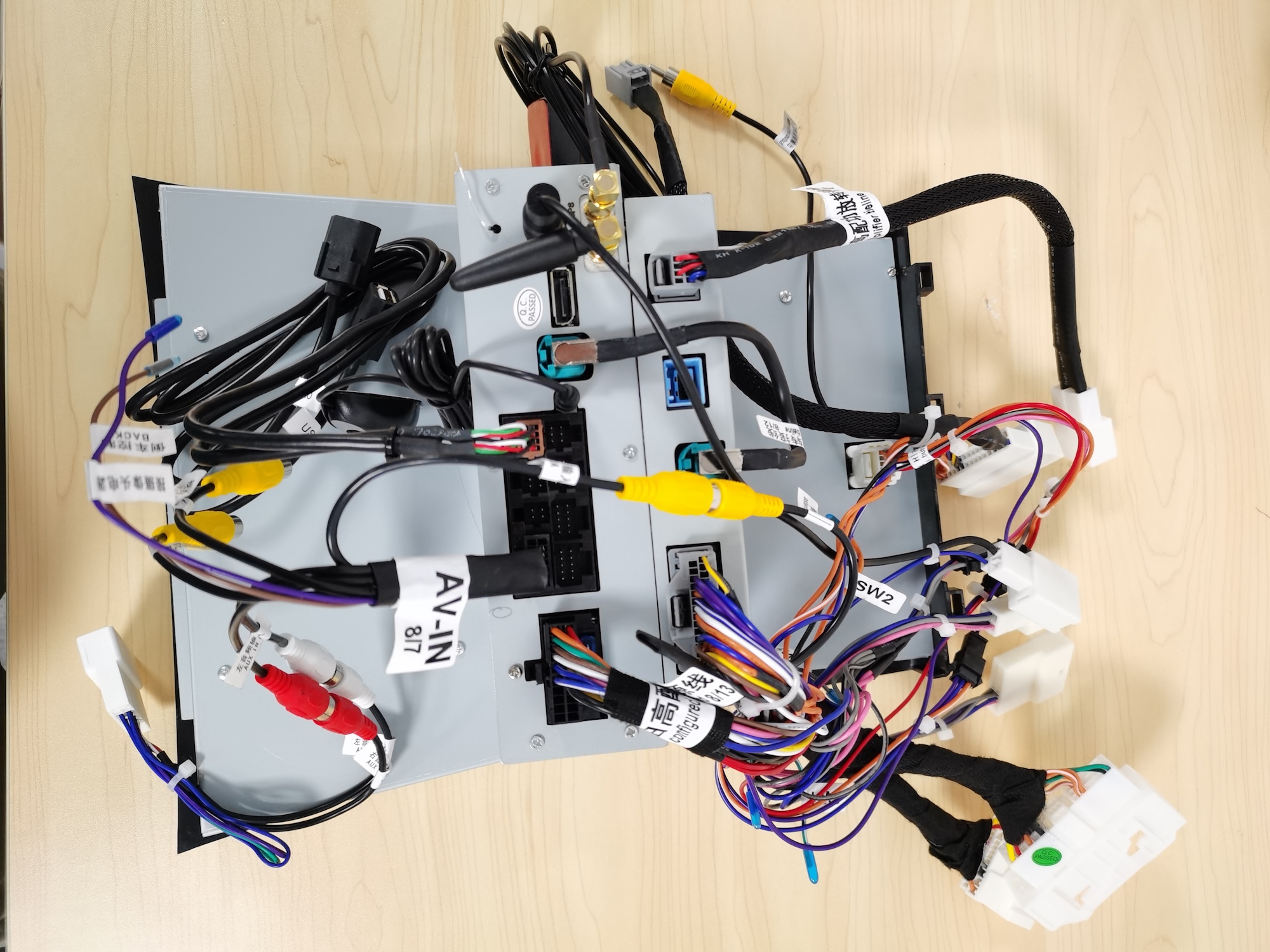

- Phoenix Android Radio Px6 Lexus Gs 300 350 430 450h 460 2005 2011 Full Unit Cables (770.49 KiB) Viewed 17604 times
