RCA Connector Pinout

Post by jnewburn0711 »

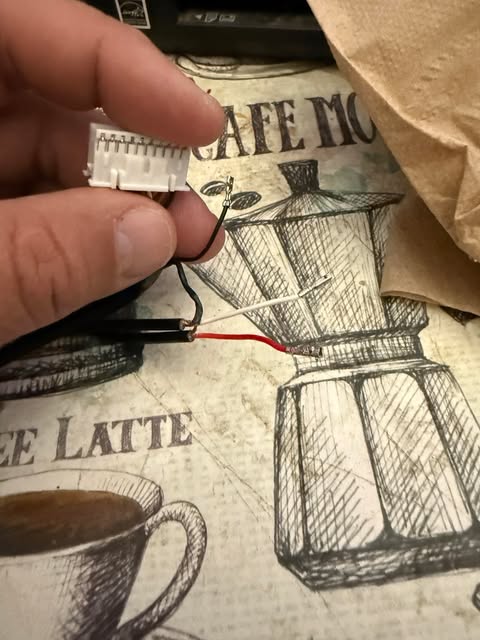

Since I was unable to get a harness directly from Phoenix automotive to directly match what I have. I am modifying the connector in the image attached. I will be soldering the white wire from another RCA to the red wire for the subwoofer output. I also depinned the daisy chained black wire as I was just going to ad in another RCA. I need the plugs wiring diagram so I can repin the connector. The RCA harness is for a 13.6" newer head uit for the 2011-2014 Chrysler 300
494887790_571708528954556_320210634519561553_n
494887790_571708528954556_320210634519561553_n (50.51 KiB) Viewed 94 times
